Green Belting THERMAL SPRAY MASKING Tapes

Common masking applications:

Plasma Spray


Extremely high temperature and high abrasion call for masking materials that must withstand these forces during expected ‘dwell time’ parameters. Masking materials, including tapes and compounds must remain in place, resist burning and edge lifting, and prevent unwanted overspray and/or damage to the part being sprayed. All Green Belting Industries Plasma Masking Materials are precision made with the highest quality Silicone, Fiberglass, Adhesives and Compounds to ensure optimum performance in this harsh setting. All are easy to work with, offer high flexibility and conformability, and can be removed cleanly and easily following the spray process, leaving leave no adhesive residue.


Recommended materials: 170-10S YL & 20S YL, 170-10S Green, 170-10S Red, 179-20S or 25S , SW-35 Fabric, and HVMC.


Gas Fueled-HVOF


The high particle velocity of GF-HVOF results in extremely high abrasion and a rapid transfer of heat through the masking materials. In order to mask effectively against GF-HVOF, masking materials, including tapes, must be strong enough to withstand both the high abrasiveness and high heat. Green Belting™ HVOF Tapes and HVMC (High Velocity Masking Compound) are proven performers that hold up exceptionally well against the HVOF spray while offering high conformability, and clean, residue-free removal.


Recommended materials: HVMT Orange Tape, and HVMC.



Liquid Fueled HVOF


The extreme abrasion and heat generated by LF-HVOF coatings often limit masking options to metal masking fixtures or tooling. However, effective masking strategies can include combinations of metallic masking for highest exposure areas, and tapes, fabrics, and compounds as secondary and supplementary masking. Used in this way, Green Belting™ Tapes and HVMC Compound can help to reduce or eliminate bridging and edge chipping, and provide effective coverage in secondary masking areas.


Recommended materials: HVMT Orange Tape and HVMC Compound as secondary masking for precision masking for challenging applications, in conjunction with metal masking profiles.


Arc Spray


The primary challenge associated with the Arc Spray coating process is the wide spray plume that exits the gun. This results in the necessity of primary masking, close to the target zone, and secondary masking to protect large non-target areas from overspray and costly clean-up or re-work. While arc spray is not as abrasive as other spray processes, it still requires proper masking to ensure protection of the part and non-target surfaces.


Recommended materials: 170-10S YL & 20S YL, 170-10S Green, 179-20S or 25S, SW-35 Fabric, and HVMC.


Flame Spray


Flame Spray coatings, (combustion coatings) are a very basic form of thermal spray coating. Because of the relatively low heat and abrasion, coatings are often applied with hand-held spray guns in an open shop setting rather than within a spray booth. Many Green Belting Industries masking materials are well-suited from this process. Masking strategies should contemplate materials that are capable of withstanding both the grit blast and flame spray coating process in order to save time and reduce cost.


Recommended materials: 170-10S YL & 20S YL, 170-10S Green, 170-10S Red, 179-20S or 25S , SW-35 Fabric, and HVMC.


Grit Blast


To effectively prepare the component for the thermal spray coating, sharp, angular media, such as aluminum oxide, is blasted at high pressure towards a target surface to remove unwanted coatings and to apply a desired (roughened) surface texture. Green Belting Industries masking materials, such as 170-10S Green are well suited to endure both the grit blast and spray coating processes, thus saving significant time and cost.

Depending on the size of grit and coating method being used,


Recommended materials include: HVMT Orange, 170-10S YL & 20S YL, 170-10S Green, 170-10S Red, 179-20S or 25S, SW-35 Fabric, and HVMC.

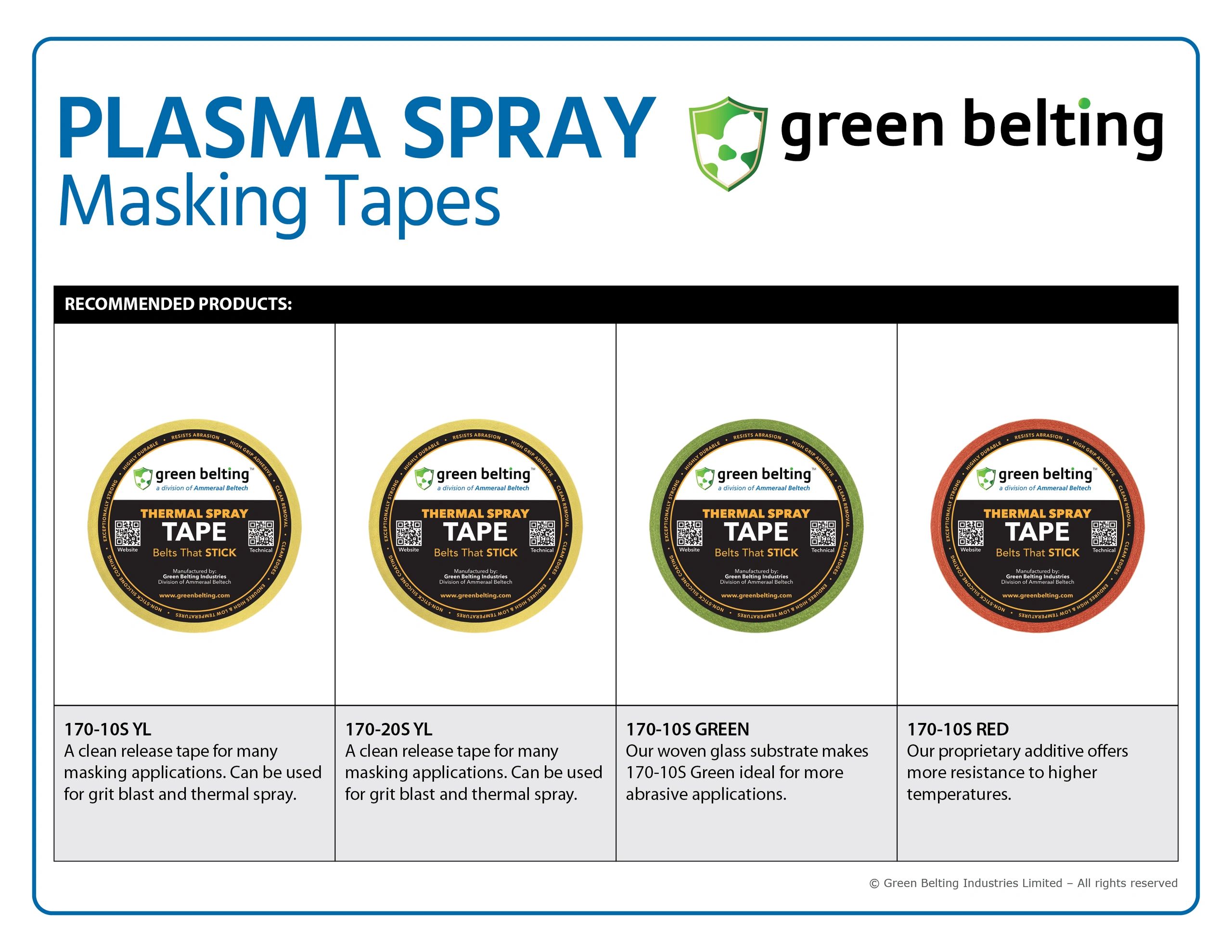

Green Belting 170-10S YL

(REPLACES 2975-8R, 2965-8R, 23816, 500, 497, 410)

Download PDF

GREEN BELTING 170-20S YL

(REPLACES H-7575, 504)

Download PDF

GREEN BELTING 170-10S RED

Download PDF

GREEN BELTING 170-20S RED

Download PDF

GREEN BELTING 170-10S GREEN

Download PDF

GREEN BELTING 170-20S GREEN

Download PDF

GREEN BELTING 160-5S HT

(REPLACES 2915-7, 2916-7, 469)

Download PDF

GREEN BELTING 179-20S

(REPLACES 498, H-7525)

Download PDF

Green belting 179-25S

(REPLACES 501, H-6595)

Download PDF

Green belting 190-7S

(REPLACES 2925-7, 407)

Download PDF

GREEN BELTING HVMT - GF-HVOF TAPE

Download PDF

GREEN BELTING HVMC HVOF MASKING COMPOUND

Download PDF

Reduce Tape Usage, Masking Time, & Increase Throughput By Using Green Belting 170-10S GREEN

 Reduce Tape Usage, Masking Time, & Increase Throughput By Using Green Belting 170-10S GREEN, 10 mil Silicone Rubber / Fiberglass Plasma Spray Masking Tape.

The 170-10S GREEN Has Much Higher Resistance To Abrasion & Heat Than Any Standard Competitive 10 mil Silicone Rubber / Fiberglass Plasma Spray Masking Tape (2975-8R, 2965-8R, 23816, 500, 497, or 410).

In Most Applications Where You Are Double-Layer A Standard 10 mil Silicone Rubber / Fiberglass Plasma Spray Masking Tape, A Single Layer Of The 170-10S GREEN Will Work, Creating A Lower Profile Which Helps Eliminate Bridging & Chipping Of Coatings.

If You Would Like To Test Samples Of The 170-10S GREEN In Your Applications, Contact Me At keith.gainey@prolineperfomancellc.com or 817-999-6089


HVMT MASKING TAPE VS GAS FUELED HVOF

HVMT Orange (HVOF Tape) is a reliable form of masking versus GF- HVOF systems. The tape can generally be applied in 1-2 layers which is a faster and more economical method of masking a component compared to designing and producing a metal mask. This masking method is also faster, more economical and reliable compared to using multiple layers of competing thermal spray masking tapes.




CUSTOM SLITTING, DIE-CUT PARTS, & NESTED KITS

PROLINE PERFORMANCE HAS CUSTOM CONVERTING CAPABILITIES INCLUDING SLIT ROLLS TO CUSTOM WIDTHS, DIE-CUT PARTS, & KITTING

dewal thermal spray masking tapes

Additional Information

DeWAL Industries manufactures the industry’s most complete line of thermal spray tapes for a multitude of applications. With years of experience developing uniform, efficient plasma tapes, DeWAL is qualified by a long list of aircraft engine, auto- motive, medical and mission-critical manufacturers. These include GE, Pratt & Whitney, Rolls Royce, GM, Stryker, Lockheed Martin and Northrup Grumman.

DeWAL tapes are free of carbonizing materials and form a protective mask for metal or ceramic plasma spraying, arc spraying, HVOF and grit blasting. No matter what the angle of spray, the metal being sprayed, the temperature or the substrate, DeWAL manufactures a tape that will withstand the bombardment, protecting pieces from overspray and splash.


DeWAL tapes are engineered to adhere aggressively, ensuring sharp edges, and remove quickly and cleanly.

DeWAL films and tapes are produced from PTFE, UHMW-PE, FEP, polyimide, glass fiber, silicone rubber, aluminum foil, copper and poly- ester film substrates with proprietary silicone, acrylic or rubber-based temperature-resistant and chemical-resistant adhesive systems.


DeWAL is ISO 9001:2008 registered and meets standards set by numerous industry groups.
